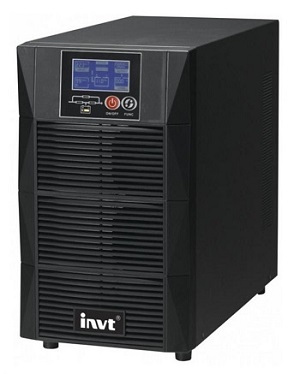

HT1102S 2KVA

HT1102S 2KVA, Online,pure sine wave,2KVA/1.8KW,72VDC,with 6pcs 12V/7AH batteries

HT11 series is online double-conversion UPS with full DSP control technology. With high input and output power factor, Wide range of input voltage while input PF>99%, Output PF of 0.9，more powerful load capability, Full protection of overvoltage, circuit short and over temperature, LCD/LED display, monitoring all the operation status, Auto fan speed adjust

Technical Specs

INPUT

• Cold Start: YES, default frequency=50Hz or settable
• Acceptable Input Voltage:
• 1. 110VAC~288VAC
• 100% load@>176VAC
• 80% load@>154VAC
• 70% load@>132VAC
• 50% load@>110VAC
• Phase: Single phase in, single phase out
• Transfer Voltage Range: (200VAC/208VAC/220VAC/230VAC/240VAC)
• Line low transfer 110VAC
• Line low recovery 121VAC
• Line high transfer 288VAC
• Line high recovery 281VAC
• Input Current: Rating (nominal input voltage) : 9.6A
• Input Power Factor ≥0.97
• Input Frequency Range 40~70Hz

OUTPUT

• Frequency adaptable Settable

Power

• Power (kVA) max: 2
• Power (kW) max: 1.8(1.6 for 200VAC/208VAC)

Output Voltage

• Waveform (Bat. Mode) Pure Sine Wave
• Nominal voltage 200/208/220/230/240VAC
• Voltage regulation ± 1 %
• Transient response   ≤5% (0% – 100% -0%)
• Transient recovery ≤30ms (0% – 100% -0%)
•    Voltage distortion ≤2% THD, linear load        , ≤ 5% THD, non-linear load

Output Frequency

• Synchronization range ±5Hz default
• Battery mode (50±0.1) Hz default

Transfer Time

• Line mode to battery mode 0

Efficiency

•  Line mode with battery full charged: 91%@100% load, 88%@50% load
• ECO mode: 97.0%
• Battery mode: 87%@100% load, 88%@50% load
• Noise (1m away) : <45dB@<60%load, 60%load
• Overload Capability(Inverter) 105%~130%: Transfer to bypass after 1 mins.
• 150%: Transfer to bypass after 30s
• Overload Capability(Battery Mode) 105%~130%:shutdown after 10s
• 150%:shutdown after 5s
• Overload Capability (Bypass Mode) <130%: Long time
• >130%&<150%:Shutdown after 10min
• >150%&<180%:Shutdown after 5 seconds
• Crest Ratio 3:1
• Leakage current <1mA <1mA <1mA

INDICATOR & ALARM

• -Display LED+LCD
• -Alarm two short one long
• -Fault Continuous beeping

INTERFACE

•     Smart RS232 Standard Cable support INVT Power Monitor Software
•     SNMP(option) Power Managment from SNMP Manager and Web Browser

OPTION

• Intelligent Kits DB9 port, dry contact
• USB B-type USB port
• SNMP Kits pluggable type
• Rating/Type: 12VDC/7Ah
• Quantity: 6
• DC Voltage: 72VDC
• Back-up Time: 6mins @80% load
• Battery-Low Voltage: 66VDC~70VDC depending on load

Charger

• Charging voltage: float: 82VDC/boost: 84VDC
• Charging current (max): 1A
• Charging time: 8h recharge to 90%
• Leakage current: <1mA
